High Speed Corrugated Cardboard Production Line 5 Layer Paperboard Making Machine
Parameter:
| Max. Working Width | 2200mm |
| Min. Working Width | 900mm |
| Max. Paper Mill Dia | 1500mm |
| Main Shaft Dia | Φ242mm |
| Max. Working Pneumatic Pressure | 0.6-0.9Mpa |
| Max. Supporting Weight (One side) | 3T |
| Pneumatic Source Pressure(Mpa) | 0.4---0.8Mpa |
Reel Stand ODM* equipped with air ventilated brakes and solid chucks
Reel Feeding ODM*
- 2 reel tracks, each 9 m travel way
- one motorized trolley per track
Pos. 2
Splicer SP-180 SP-180 including web tension control DUAL CONTROL paper break detection
Splicer SP-250 SP-250 including web tension control DUAL CONTROL paper break detection
Tear Control for automatic release of splice at paper breaks at speeds up to 120 m/min
Rest Roll Computer RRC for automatic splice release at pre-set paper length
Pos. 3
1 Steady Facer SF-180
- including one cassette equipped with C-flute corrugating rolls, tungsten coated
- peripheral heating of corrugating rolls
- one manual cassette trolley for quick flute changes
- Heavy Duty pressure roll to suit all standard board grades above 90 g/m2
- BHS LPC System for constant Line Pressure Control at the pressure roll, individually adjustable per side
- hydraulic control for corrugating roll pressure individually adjustable per side
- “Soft Touch Control” for applicator roll by completely self-adjusting hydraulic system
- motorized glue dam positioning
- fully retractable glue unit for easy access and quick cleaning
- automatic glue gap control in regard to machine speed
- center roll vacuum system including piping, connections and suction unit
- full size steam shower chest with drain and quick stop function
- condensate traps and steam piping as an integral part of the machine
- PLC control with touch screen and process data indication
1 Inclined conveyor up to the bridge
1 Air conditioning unit for machine side switch cabinets
1 Integrated Preheater 900 mm ODM*
- with AC drive energy refeeding
- with automatic wrap adjustment
1 Integrated Liner Boost Hot Plate for optimum heating of heavy liner papers pneumatic activation
1 Integrated Preconditioner 400 mm ODM* for heating of the medium paper
- with AC drive energy refeeding
- with automatic wrap adjustment
1 Width-related glue dam positioning
1 Additional cassette module equipped with one set of E-flute including chrome coated corrugating rolls, vacuum connection and cleaning finger bar; peripheral heating of corrugating rolls + Cassette trolley, manually or motor driven (option)
Pos. 5
1 Simplex Bridge ODM* consisting of :
Steel construction with steel catwalk on operator side, duplex bridge drive and horizontal conveyors
1 WEBTROL duplex bridge guide automatic web guide in edge and center mode
1 bridge brake with pneumatic brake
1 Assembly frame for simplex bridge to take up control frame of bridge guide and bridge brake including deflection tube for festoon damping
2 Manual waste evacuation
Pos. 6
1 Double Preheater 900mm ODM*
- operator control and display integrated in the Glue Unit GU-180 operating panel
- with AC drive energy refeeding
- with automatic wrap adjustment
Pos. 7
1 Simplex Glue Unit GU-180
- with individual servo drives
- self-adjusting pressure shoe system
- integrated touch panel
1 Automatic glue dam adjustment and glue level control for GU-180
Pos. 8
1 1 Floating BARTROL Loading System for improved printing surface of light papers between 50 - 90 g/m2 on C-, B- and E-flute
- pre-set loading pressure from full load to free floating depending on board combination
- automatic lifting of edge bars to prevent extensive belt wear when running small width papers
operating screen combined with GU-180
Pos. 9
1 Rotary Shear RD-180 RD-180 for normal order change
- 30 kW A.C. drive
- max. cutting speed 180 m/min.
1 Remote Control remote initiation from DF-230 infeed stand for precize release of waste ejection
1 Synchro Cut triggered cut at order changes for max. 0.5 m order change waste
1 Waste carriage
Pos. 10
1 Slitter Scorer SR-180
SR-180 - scorer, scorer, slitter
- for 5 outs
- trim tube positioning
- Disc-Cut system, cut from bottom side
- Swing Change for uninterrupted web during order change
1 Air conditioning unit for machine side switch cabinets
1 Lateral brush roll movement
1 3-in-1-profile (male – female, male – male, male – male offset)
Pos. 11
1 Transfer Tables, Simplex, in stainless steel construction between Rotary Shear / Slitter Scorer and Slitter Scorer / Cutoff
1 Protection devices for SR-230 and HQ-230
Pos. 12
1 Simplex High Speed Cutoff HQ-180
HQ-180 steel knife bars for board weight up to 1,500 g/m²
1 Double roll infeed for improved pulling of heavy boards
Pos. 13
1 Automatic Simplex Stacker US-180
Upstacker
- chamber length: 3,600 mm - stack height : 1,800 mm
- plastic belt cross conveyor
- air conditioning unit
Pos. 14
CORRUGATOR CONTROL SYSTEM
Wet End Control
1 Duplex Bridge Level Control BLC with light barrier detection
1 Parallel operating screen
Product Tags:
|
|

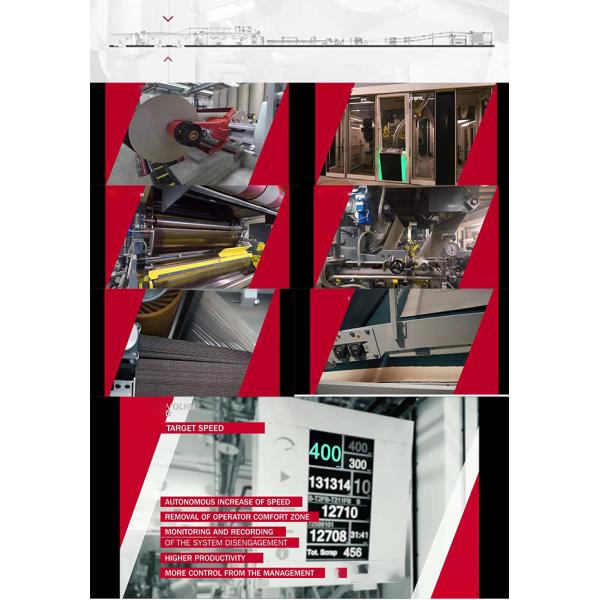

High Speed Corrugated Cardboard Production Line 5 Layer Paperboard Making Machine Images
|
